APS sensored motor to VESC!? How to

ESK8 Electronics
1

Hey

APS 6374S Sensored Outrunner brushless motor 200KV 3200W

I have no clue how to connect this sensor to the VESC. Anyone know!?

2

Please use the search function it delivers things like this

1 Like
3

Thanks. I couldnt find that. So what one do I leave out. It doesnt say on that post. The TEMP one? So based on that info, am I presuming that

5v = RED TEMP = BLACK hall1 = GREEN hall2 = BLUE hall3 = WHITE GND = YELLOW

in this APS motor?

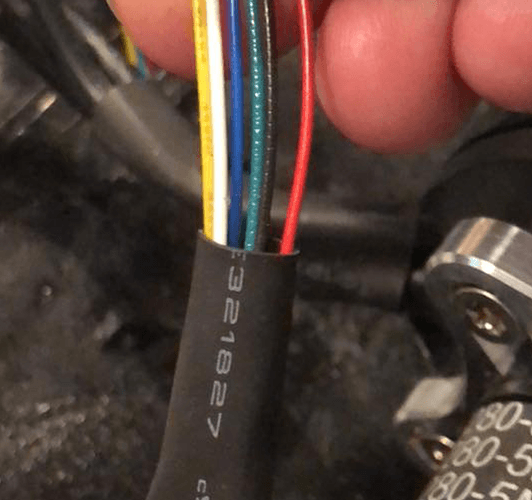

Screen Shot 2017-12-23 at 01.10.59.png938×880 606 KB

4

Wait… is VESC 5 or 6!? So much confliciting info.

5

Black/red = power Blue,yellow,green = hall

6

So thats 5 wires. Is the VESC not 6?

7

For temp , but most motors don’t actually have a temp sensor so the wire doesn’t go anywhere and it’s not needed for sensors to work

Also it would help to have a picture of the actual connector coming from the motor and not just the wires to confirm :wink:
