FatBoy Evo | Landyachtz Evo | 6374 190kv | FatBoy Mini 1:2.8 Urethane Gear Drive | 107mm ABEC | 12S 5P 30Q 15Ah | Dual FocBox

ESK8 Builds
1

This build is our prototype for our production board based on Evo deck and our gear drives. Exploring the best way to make a modern, rigid and safe board for maximum fun.

Features:

  • Landyachtz Evo 39" Deck
  • FatBoy 230 Hangers with Caliber II baseplates

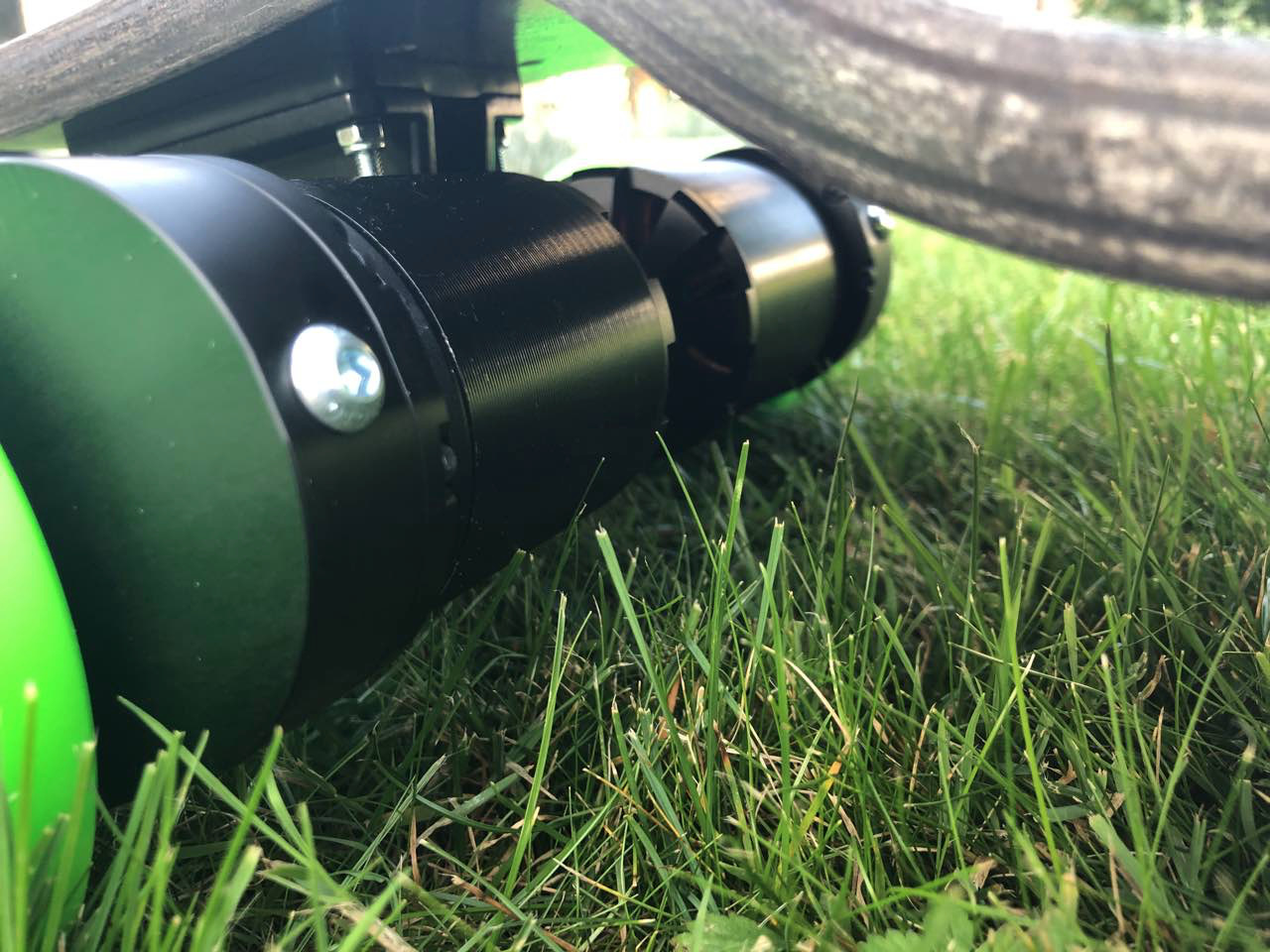

  • FatBoy Mini 1:2.8 Urethane Gear Drive
  • ABEC 107 flywheels
  • 12S5P Samsung 30Q 15Ah 75A solid battery pack
  • FatBoy Mini Sparky Switch
  • Dual FocBox with FatBoy Dual FocBox Heatsink
  • FatBoy Checkers Enclosure for Evo
  • FatBoy X LCD Plate in front, FatBoy X plate in the back
  • Mini remote

I will be posting pictures here regardings this build



















11 Likes
2

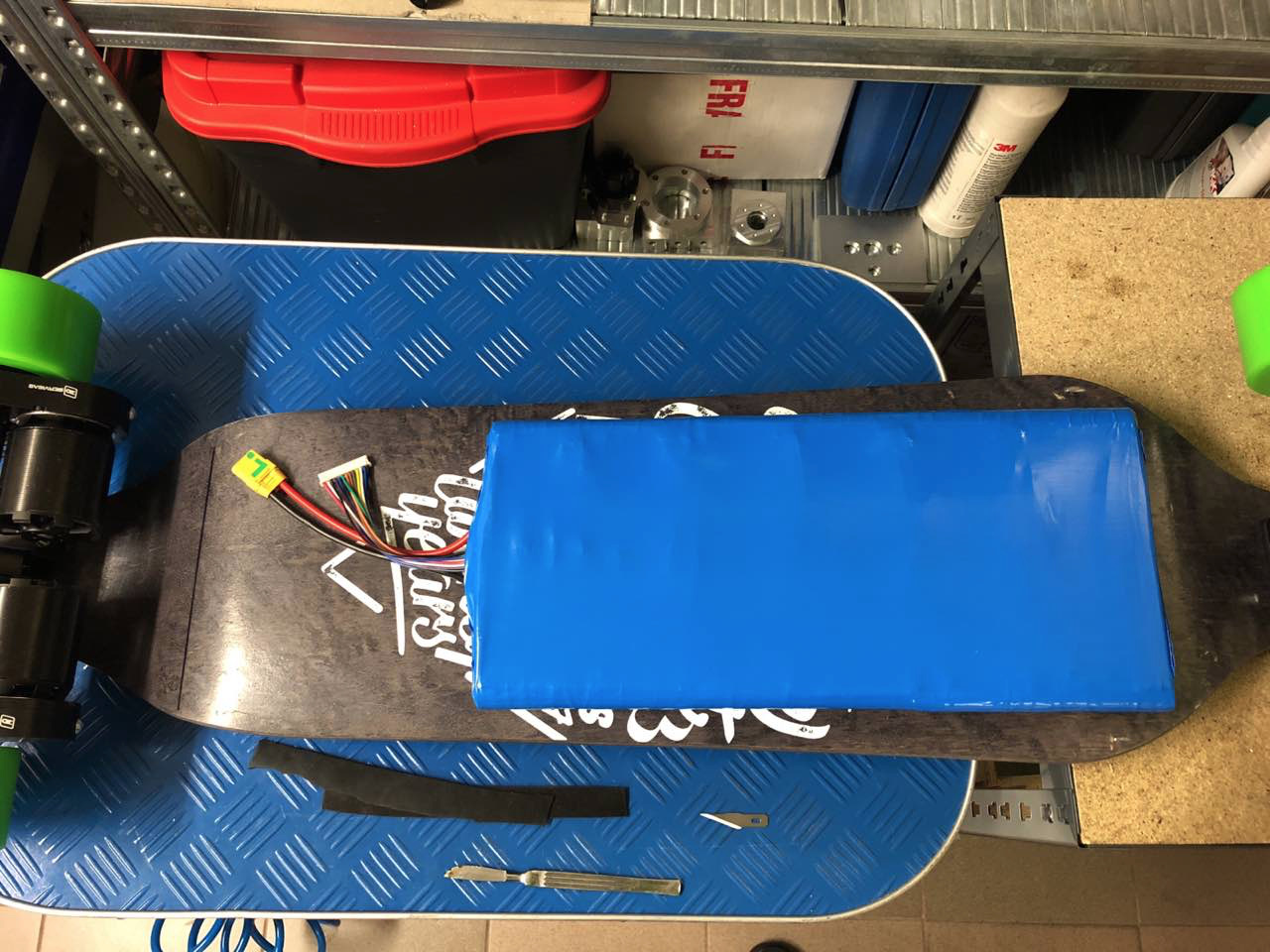

This is how our battery is built:













This is our riser with integrated connectors


13 Likes
3

what´s inbetween of the two rows of p-packs? is it a silicon spacer?

4

fr-4 substrate (The same stuff in the center of PCB for isolation)

1 Like
5

those risers look great! any plans of offering them separately?

4 Likes
6

Maybe, will be available :wink:

2 Likes
7




5 Likes
8

What’s that yellow thing?

9

Which one? In enclosure? If so its kapton tape, to isolate carbon from internals :slight_smile: Plus incase of some shorting or etc wouldn’t burn enclosure as kaptop is high heat resistant :slight_smile:

1 Like
10

Where did “FatBoy” originate from?

Battery looks clean

11

Ahm Random Thought when I was making my first esc design as it was bit “fat” current wise :smiley: and I liked the idea of it for everything else

2 Likes
12

Do you have some fr-4 left or a source for it?

13

Haha yes, but probably it would be cheaper to find it locally :laughing:


1 Like
14

Added power jack and button :slight_smile:



3 Likes
15


5 Likes
16

@Kug3lis I think I already asked you but couldn’t find, what are the connectors you are using for the sensors called? And where can I find them? I was looking today ate some M9 0B aviation connectors that look really nice and are available with 6 pins

17

You build fast!

It’s looking sexy

18

These exact ones I don’t know the code but the ones which I use 6 pin ones are these:

2 Likes
19

I am just forwarding messages @3DServisas is building

20

Thanks the best ones I’ve found are the Higos, but you never found somewhere to buy, apparently they only supply manufacturers
