Here is my electric mountainboard build that was started mid-April 2017. Have gotten 3 days of riding in and it’s so much fun! Going to the MTB park next weekend!
DETAILS ABOUT THE BUILD:
- Deck: Trampa Short MTB (Cheapest one
) - Battery (3): LiPo 3S 5000mAh 30C Zippy
- ESC Primary: OllinBoardCo. VESC 4.12
- ESC Secondary: Torqueboards VESC 4.12
- Motor (2): Torqueboards 6355 190KV
- Motor Mount: Custom mount based off Torqueboard’s V4 mount
- Total Cost: $952
CURRENTLY WORKING ON:
- Working on a carbon fiber VESC enclosure
- Motor mount guards
- Designing a logo
ONLINE CALCULATORS I USED:
Speed Calculator Center Distance Calculator Used the tables from BeltingOnline to design the 72T pulley
PHOTOS:
-
Motor Mount/Clamp designed in SolidWorks
-
The Center to Center distance. Mine was calculated to 107.42mm.
-
Full assembly of my mountainboard.
-
3D printed 72T wheel pulley with ABS material. Has been working great!
-

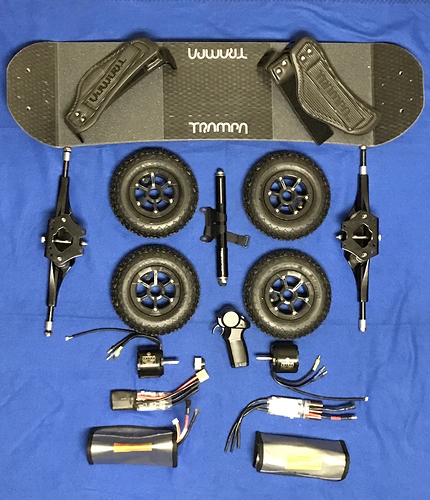

Trampa Short MTB Deck/Parts
-
Preparing to CNC the mounts.
-
CNC’d the motor mounts and clamps
-
Drilling the hole that will be tapped.
-
Drivetrain is partially complete (guards are remaining)
-
Diagram of the electrical layout.
-
Soldering on 5.5mm bullet connectors onto the VESCs.
-
VESC voltage and current settings for a 9S 190kv setup. Working fine for 3 days of riding around the park.
-
Ride Day 1: Testing around the park. Everything was a success!
-
Ride Day 2: Riding off trail! So much fun!!
