Or 3.6*12+3 = 46.2 if your batteries max out at 3.6v? Hoping this is modifiable via settings
1 Like
Yes, exactly! All voltages are configurable.
In my example I assumed the most common li-ion isch voltage. What chemistry do you use?
1 Like
Cool, this was one of the main reasons I really liked this BMS; it’ll support my current chemistry and any others if I change my mind in future. Battery pack is a 12S2P A123 26650 LiFePO4 setup.

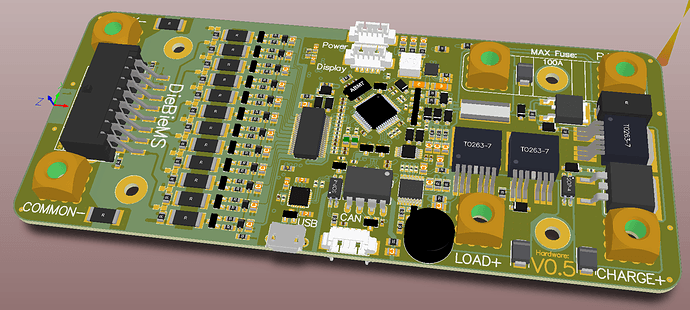

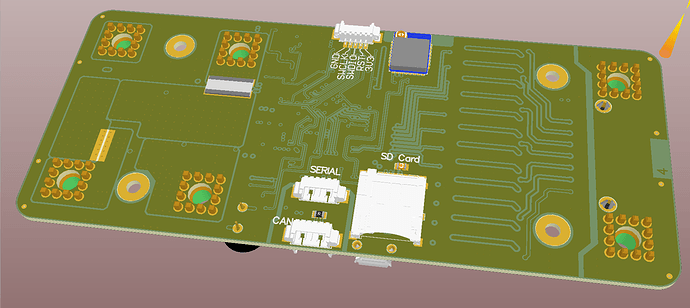

Ok, I finally had time to build and evaluate my latest design, I found a very small improvement and fixed it right away (I had the wrong value resistor next to the NTC) in the design. So for everyone that wants to make a DieBieMS; you are good to go!
This latest revision has an NTC close to the switching logic (to intervene with possible overheating of the switching logic) and an optional Anaren transceiver that could be used as a receiver for a remote
(I really like this optional feature).
I tested the NTC and the communication to the transceiver and they both seem to work.

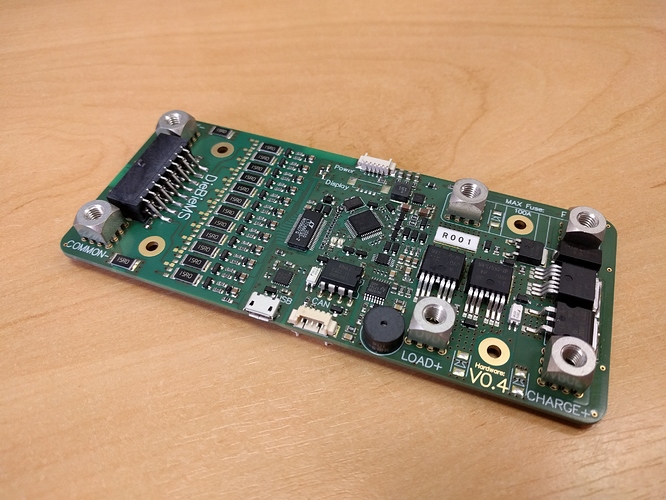

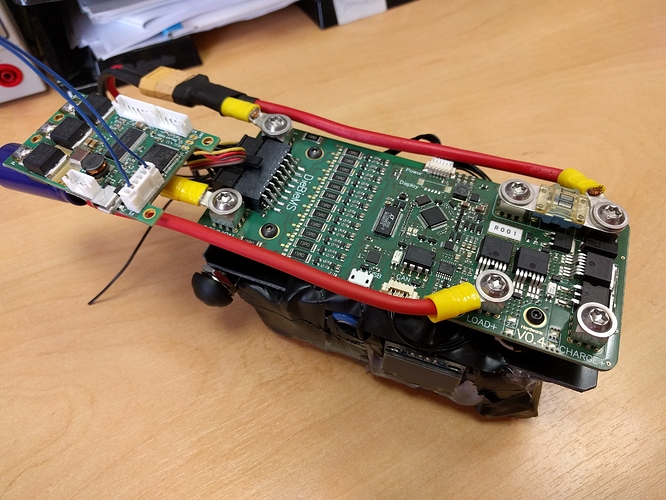

This board is not fully populated, I couldn’t find the parts for the sections of the board with missing parts (TVS diodes and the display connector), those sections however did not change and were already proven to work in the previous versions.
I couldn’t find the tool to insert the press fits all the way but really wanted to start testing. Once all components are in and I pressed the pressfits all the way ill post a pic (again, this has no influence on the functionality).
Thanks for everyone’s patience so far!
17 Likes
In my latest design I use the 7730, I might have used the other FET in older designs/prototypes but the 7730 should be in the new.
What is the benefit of having a F1 instead of the F4? You have freedom now to implement almost everything you want. In the future features might be added ( like a receiver as on my latest design ) and maybe logging (also possible on my latest design ). The added cost and power usage was in my opinion negligible compared to the value of more computational power (but that is just my opinion, I might have overlooked something).
Thanks for analysing and help!
This was a reply in this topic:
I wil try and aim to keep most of the technical information here else everything might get scattered around.
3 Likes
That makes sense, similar reason to Vedders choice of the F4 for the VESC. And the only benefit of the F1 or other smaller microcontollers was price and power consumption but for this application I suppose it doesn’t really matter. Though on that topic what is the standby power of this BMS? Im assuming the F4 has a very low power sleep state and thats what its in most of the time yes? Anyways thanks for responding!
Look at the schematic, once powered down the whole board except for a couple of multi meg ohms is disconnected. The sleep power of the MCU doesn’t matter since its completely disconnected from the batter
.
When will the next batch of BMS’s start up?
1 Like
Hi Everyone!
I have been crazy busy working on more projects than I can handle
. The resent developments with the group buy, some of my friends I sold a BMS to for their skateboard asking to configure / customize it and a personal project (efoil) had me to focus for the last two days on implementing a basic way of status reporting and customizing the BMS trough a UI.
And with the help of the world of opensource I represent to you; a crudly simple way to configure the BMS (for now). Of course I (or we
) will be realising a decent UI but for now this should provide basic functionality:

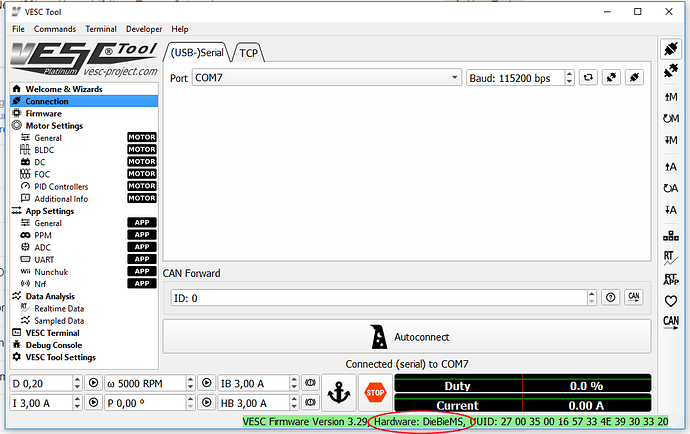

The firware version is incorrect, but I have to set it like this to trick the VESC-Tool to allow me to use the terminal.
I implemented the communication style of the VESC, this will make it crazy easy to (in the future) configure all esk8 electrical components over the same CAN bus, for now only USB is supported (no CAN, no firmware upgrade, no UI yes) in collaboration with the VESC-tool and its terminal. I am eager to start implementing firmware upgrade and CAN functionality but I simply was unable to finish it on time for the group buy to start shipping (sorry guys ).

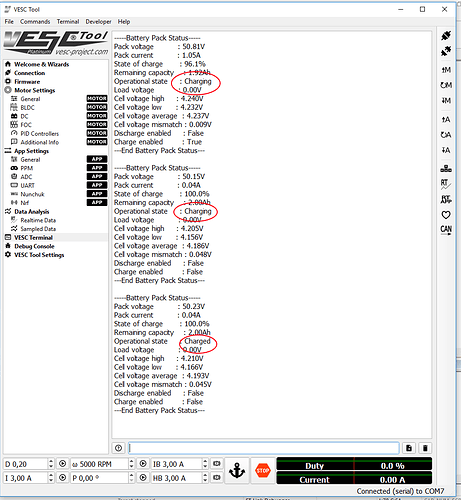

I was however able to implement cell voltage status report generation over terminal:

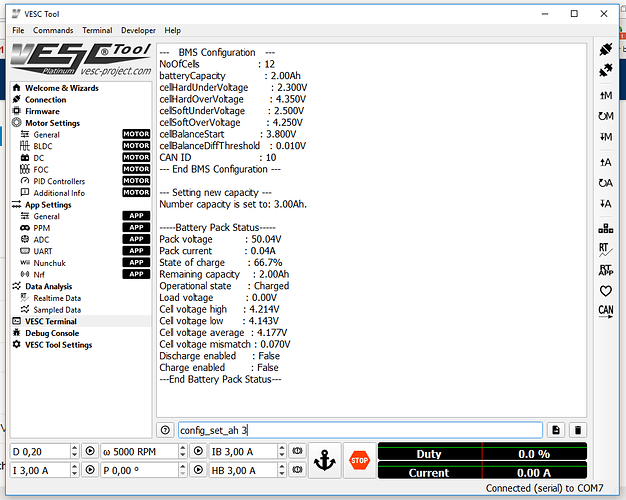

Battery summary report:
Change settings:
Like: pack amp hours cells in series soft and hard under and over voltages (determines the (dis)charge enable moments and error states). can id (for the future) cell voltage threshold to start balancing cell mismatch balance start threshold

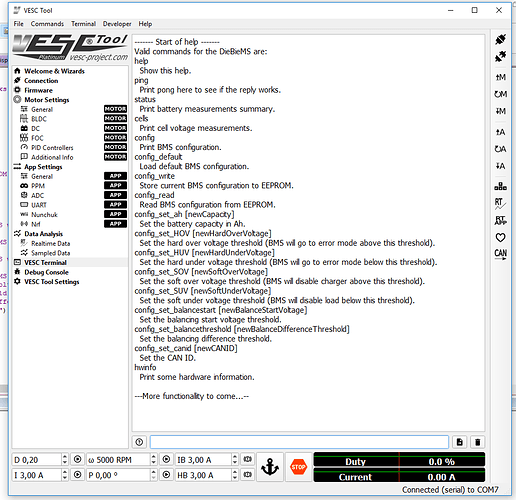

And reports a help info block:
More to come! Thanks for you patience everyone
.
14 Likes
@JTAG Would be possible to port your firmware to @raphaelchang BMS? At least part of it? If you say so I think I will try that since Raphael vanished and left us with non working boards
Oh man. This hack is even more epic than the hack I posted over in the other thread
. I love it!
About @raphaelchang 's BMS, perhaps is there someone n the shadow working on it ?
I’m mean, “in the shadow” is even not true because he keeps people updated and asked for support
Anyway, the VESC Tool trick is an amazing idea. I keep this idea in the corner “in case of”. Really nice work !
I really hope, i planned to help put things moving, but since the connection for debugging is only working on mac i’ve put it aside and ordered a cheap BMS from aliexpress
@JTAG do you have the schematic somewhere? the link is not working and i couldn’t find on GitHub
thanks
1 Like
No worries.
I’m a early beginner into C coding so it’s a big amount of work to train myself (reading books or studiyng other codes like @JTAG or Vedder’s’s one ) and to gain knowledge (or remembering as I had some lithium batteries courses at university) about the way to manage charging/balancing.
ATM, I wrote A LOT of code (including charge/balance storage, CAN bus with VESC, UI, SoC, voltage SAG calculation and so on) but I’m still in the process of building a bench to try all this fresh and non-debugged code with safety.
Sorry JTAG for this off topic.
1 Like
Should we be using the IRFS7730 instead of the IRFS7530 found in the latest BOM?
There’s a serial port under the board. Would it be possible to wire up one of those HM-10 Bluetooth modules?
the board has can bus, so yes

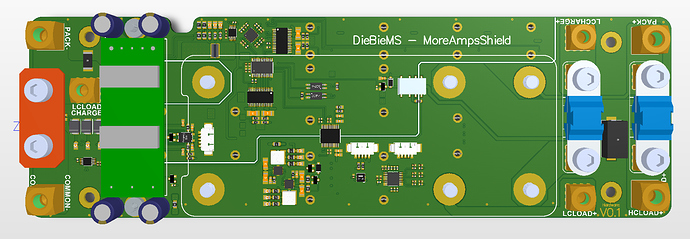

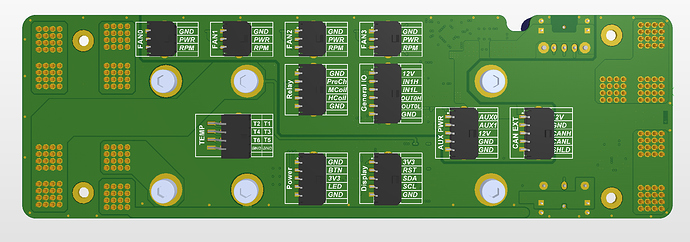

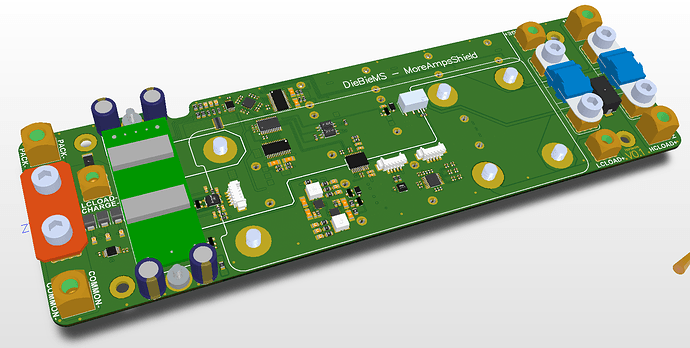

By a customer’s request; a shield that adds 6 temperature sensors, a DC - DC converter (for 12V on the can bus), 4 fans with rpm control, buffered IO, relay driver, additional pre-charge method and shunt to allow currents up to 250A .
This will be perfect for applications that require a bit more power or “MoreAmps”
.
Once the design is tested and my customer is OK with it ill opensource as well.
